For Steel,Cast Iron

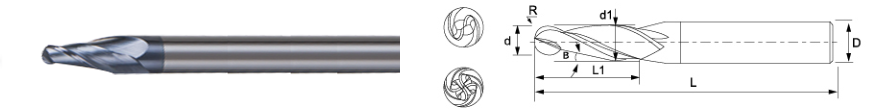

Serial No. GX10018... | 030-1 | 030-2 | 040-1 | 040-2 | 050-1 | 050-2 | 060-1 | 060-2 | 075-1 | 075-2 | 080-1 | 080-2 |
Radius | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | 0.75 | 0.75 | 0.8 | 0.8 |
Taper B | 1° | 2° | 30' | 1° | 1° | 2° | 1° | 1°30' | 1° | 2° | 1°30' | 2° |
Diameter d1 | Φ0.73 | Φ0.86 | Φ0.89 | Φ1.0 | Φ1.26 | Φ1.53 | Φ1.46 | Φ1.59 | Φ1.75 | Φ2.01 | Φ2.27 | Φ2.39 |
Flute Length L1 | 4 | 4 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 12 |
Shank Dia D | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Total Length L | 35 | 35 | 35 | 35 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
Flutes | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |

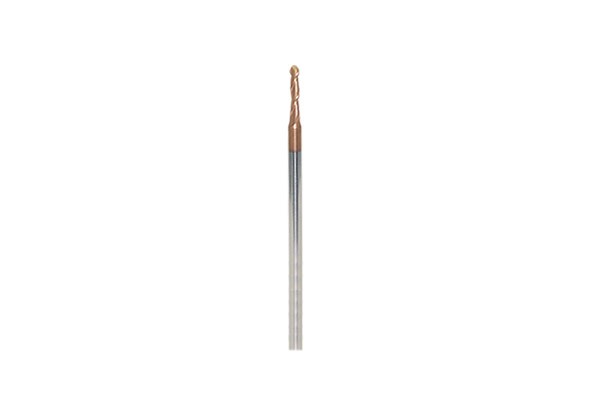

Name: | Corner Radius/ Ball Nose Mill/Taper Mill | Material: | Solid Carbide |
Flute Dia: | 0.3~40mm | HRC: | 45°, 50°, 55°, 58°, 60°, 65° |
Shank Dia: | 4~40mm | Coating: | AlTiN, TiAlN, TiAlSi, TiSiN, TiN, DLC, Nano, Diamond |
Total Length: | 38~330mm | Precision: | 0.005~0.01mm |
Process Equipment: | CNC Tooling | Suitable For: | Mild Steel, Carbon Steel, Cast Iron ,Hard Steel, Super Hard Steel, Stainless Steel, Titanium, Billet Aluminum |
