For Steel , Cast Iron

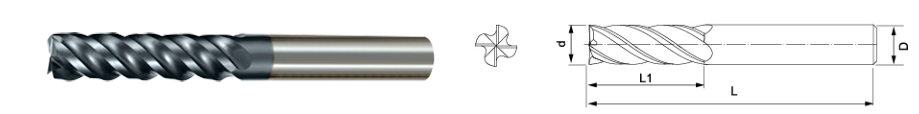

Serial No. GX10010... | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 180 | 200 | 250 |
Diameter d | Φ3.0 | Φ4.0 | Φ5.0 | Φ6.0 | Φ7.0 | Φ8.0 | Φ9.0 | Φ10.0 | Φ11.0 | Φ12.0 | Φ13.0 | Φ14.0 | Φ15.0 | Φ16.0 | Φ18.0 | Φ20.0 | Φ25.0 |
Flute Length l1 | 8 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 25 | 25 | 30 | 45 | 45 | 45 | 45 | 45 | 45 |
Shank Dia D | 4 | 4 | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 14 | 16 | 16 | 18 | 20 | 25 |
Total Length L | 50 | 50 | 50 | 50 | 60 | 60 | 75 | 75 | 75 | 75 | 80 | 100 | 100 | 100 | 100 | 100 | 100 |
Name: | 2~6Flutes End Mill/High-Helix Angle | Material: | Solid Carbide |
Flute Dia: | 0.3~40mm | HRC: | 45°, 50°, 55°, 58°, 60°, 65° |
Shank Dia: | 4~40mm | Coating: | AlTiN,TiAlN,TiAlSi,TiSiN,TiN,DLC,Nano,Diamond |
Total Length: | 38~330mm | Precision: | 0.005~0.01mm |
Process Equipment: | CNC Tooling | Suitable For: | Mild Steel ,Carbon Steel,Cast Iron,Hard Steel,Super Hard Steel, |
