For Steel ,Cast Iron

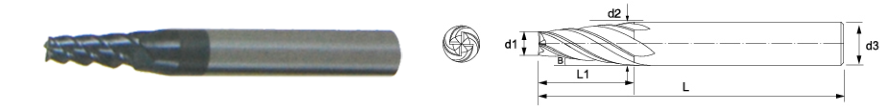

Serial No. GX10019... | 060-1 | 060-2 | 080-1 | 080-2 | 100-1 | 100-2 | 150-1 | 150-2 | 300-1 | 300-2 | 400-1 | 400-2 | 600 | 800-1 | 800-2 | 800-3 |
Taper B | 30' | 1° | 1° | 2° | 1° | 2° | 30' | 2° | 1.5° | 2.5° | 1° | 3° | 1° | 1° | 3° | 5° |
Diameter d1 | Φ0.6 | Φ0.6 | Φ0.8 | Φ0.8 | Φ1.0 | Φ1.0 | Φ1.5 | Φ1.5 | Φ3.0 | Φ3.0 | Φ4.0 | Φ4.0 | Φ6.0 | Φ8.0 | Φ8.0 | Φ8.0 |
Taper Dia d2 | 0.67 | 0.74 | 1.01 | 1.22 | 1.21 | 1.84 | 1.64 | 2.06 | 3.52 | 3.87 | 4.52 | 5.57 | 6.27 | 8.87 | 10.63 | 12.37 |
Flute Length L1 | 4 | 4 | 6 | 6 | 6 | 12 | 8 | 8 | 10 | 10 | 15 | 15 | 20 | 25 | 25 | 25 |
Shank Dia d3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 8 | 10 | 12 |
Total Length L | 35 | 35 | 35 | 35 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 60 | 65 | 75 | 100 |

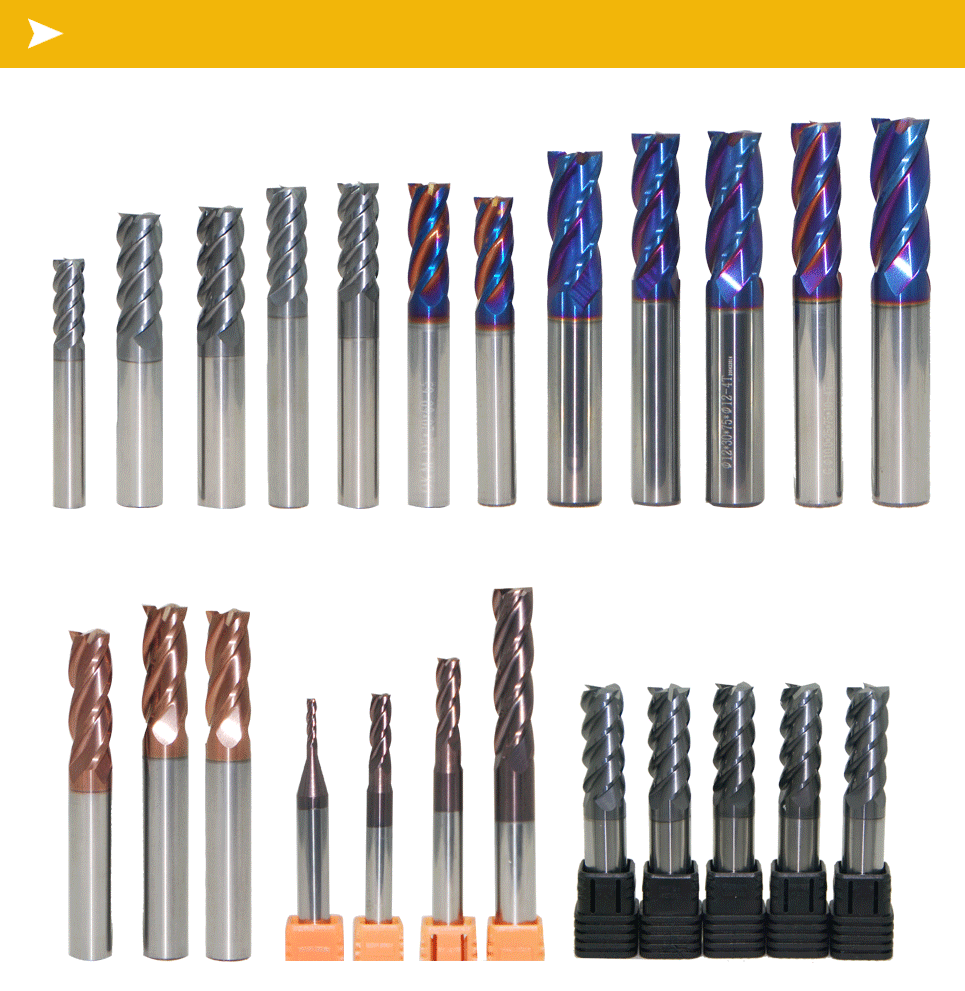

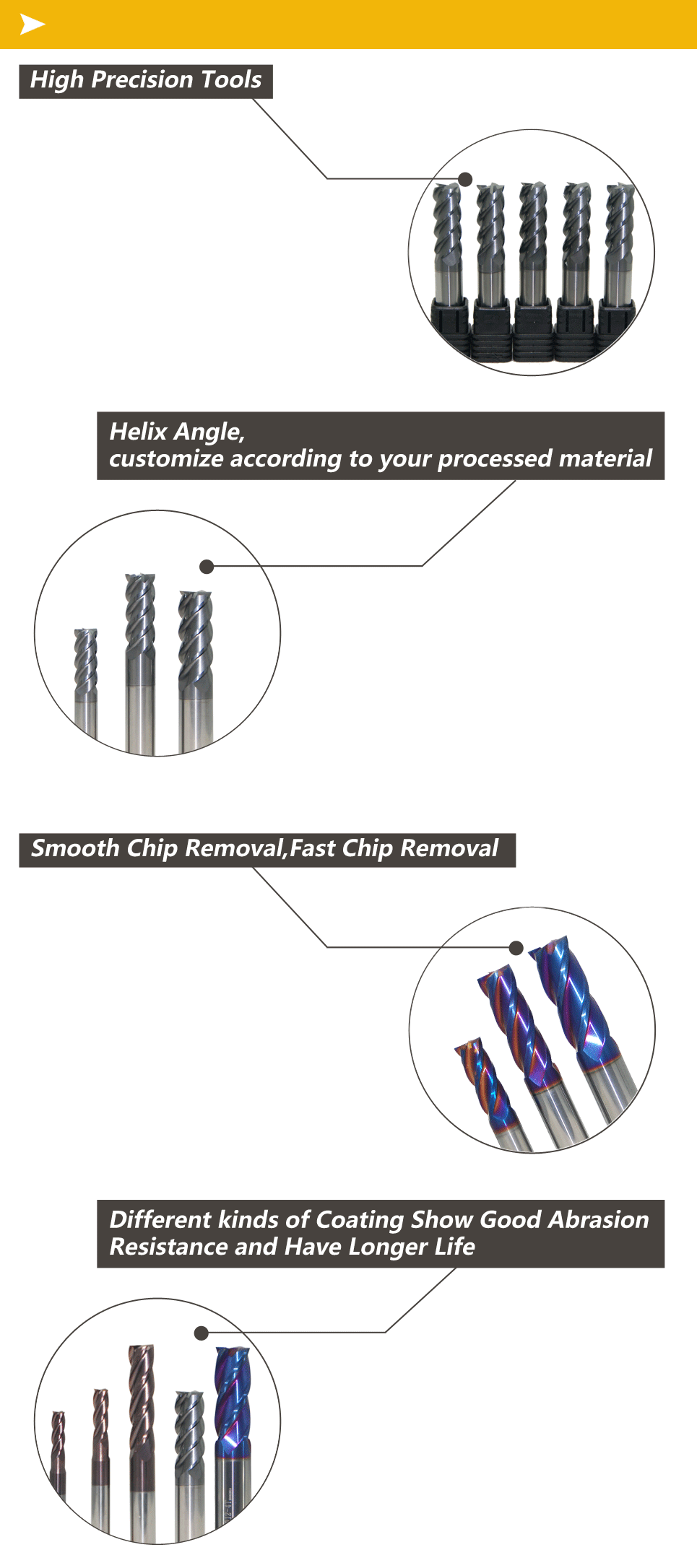

Name: | 2~6Flutes End Mill/High-Helix Angle | Material: | Solid Carbide |
Flute Dia: | 0.3~40mm | HRC: | 45°, 50°, 55°, 58°, 60°, 65° |
Shank Dia: | 4~40mm | Coating: | AlTiN, TiAlN, TiAlSi, TiSiN, TiN, DLC, Nano, Diamond |
Total Length: | 38~330mm | Precision: | 0.005~0.01mm |
Process Equipment: | CNC Tooling | Suitable For: | Mild Steel, Carbon Steel, Cast Iron, Hard Steel, Super Hard Steel, Stainless Steel, Titanium, Billet Aluminum |
