For Steel , Cast Iron
Serial No. GX1009... | 60 | 80 | 100 | 120 | 160 | 200 | 250 |

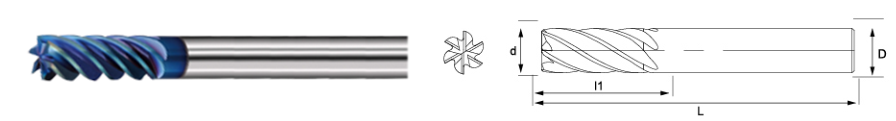

Diameter d | Φ6.0 | Φ8.0 | Φ10.0 | Φ12.0 | Φ16.0 | Φ20.0 | Φ25.0 |
Flute Length l1 | 16 | 20 | 25 | 25 | 45 | 45 | 45 |
Shank Dia D | 6 | 8 | 10 | 12 | 16 | 20 | 25 |
Total Length L | 60 | 60 | 75 | 75 | 100 | 100 | 100 |

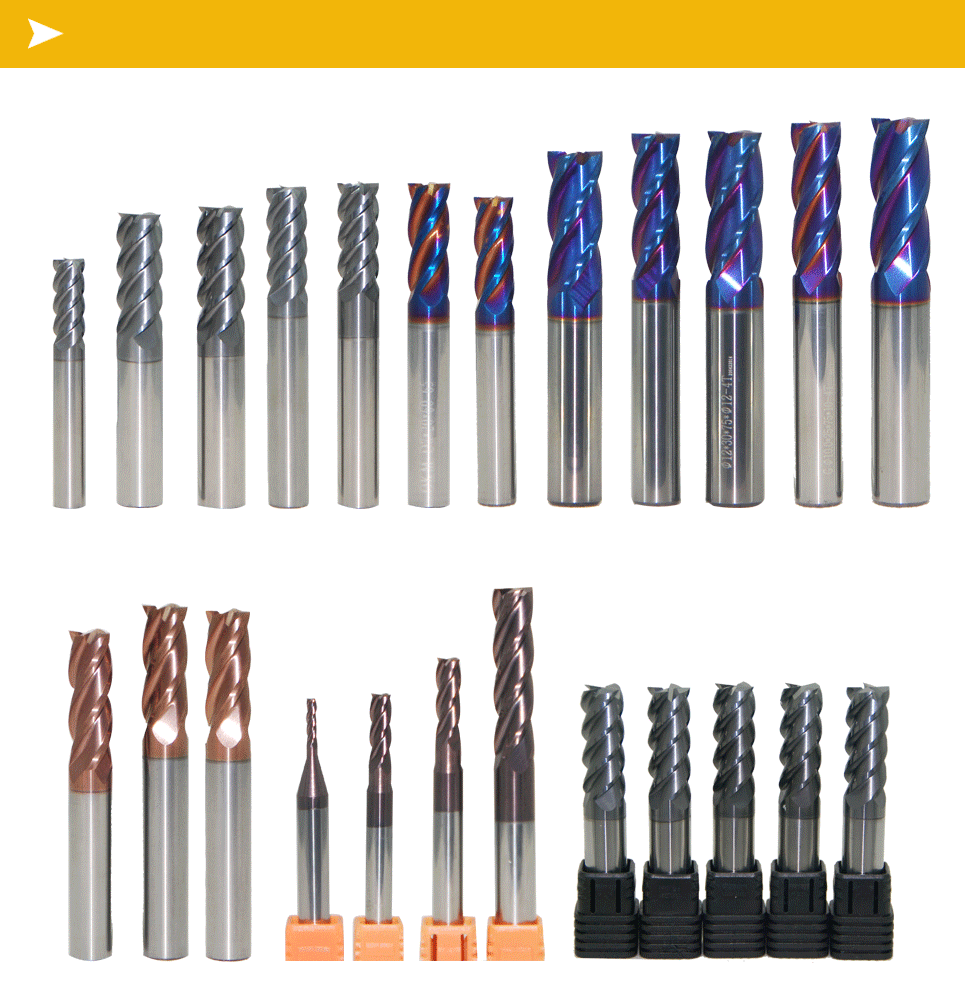

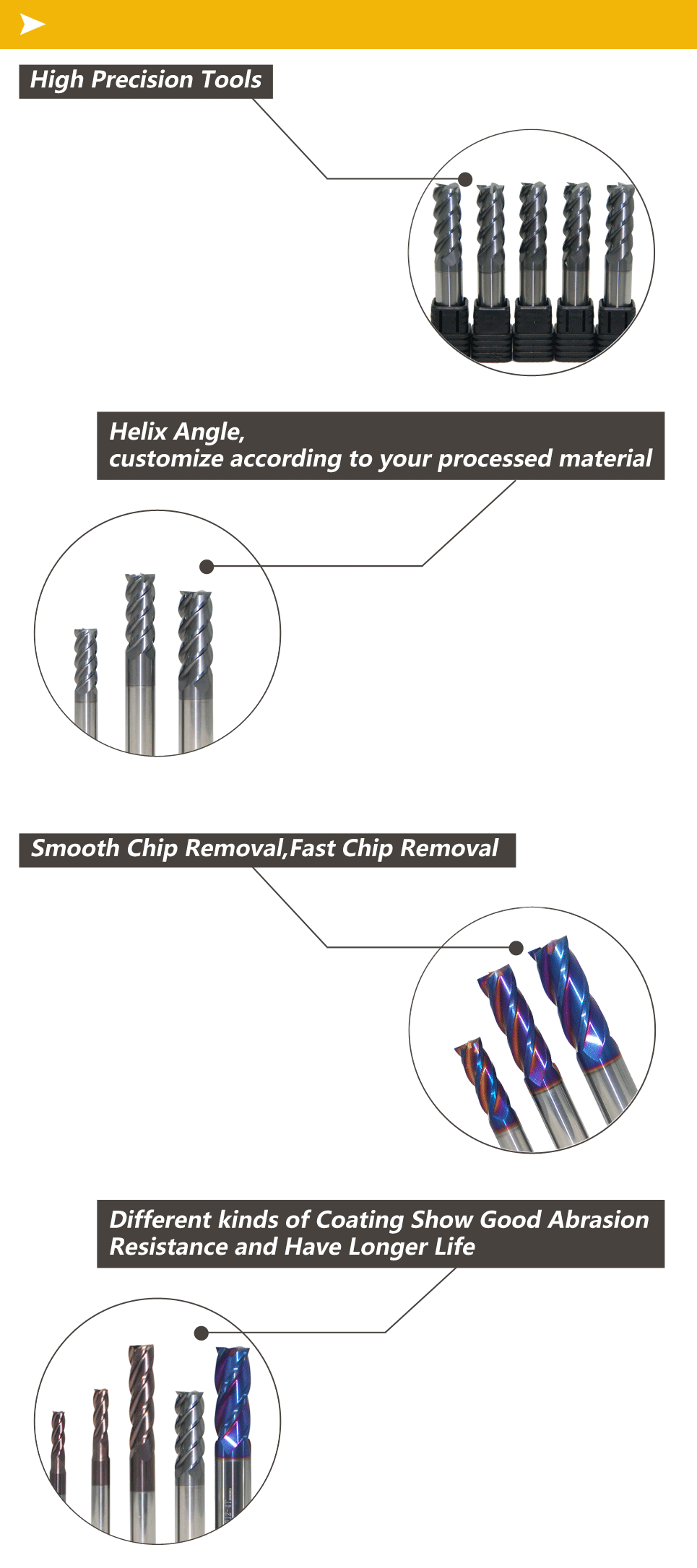

Name: | 2~6Flutes End Mill/High-Helix Angle | Material: | Solid Carbide |
Flute Dia: | 0.3~40mm | HRC: | 45°, 50°, 55°, 58°, 60°, 65° |
Shank Dia: | 4~40mm | Coating: | AlTiN, TiAlN, TiAlSi, TiSiN, TiN, DLC, Nano, Diamond |
Total Length: | 38~330mm | Precision: | 0.005~0.01mm |
Process Equipment: | CNC Tooling | Suitable For: | Mild Steel, Carbon Steel, Cast Iron, Hard Steel, Super Hard Steel, Stainless Steel, Titanium, Billet Aluminum |
