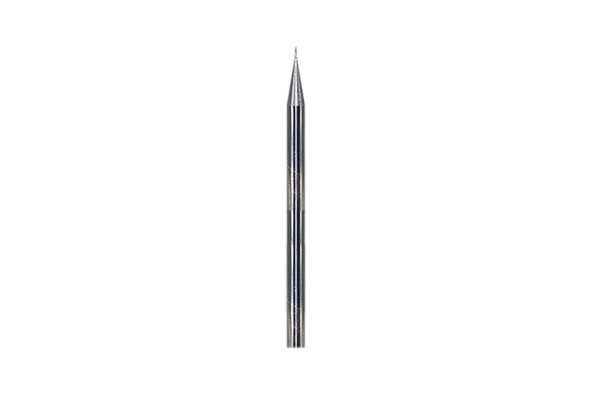

2 Flutes Micro Ball Nose Mill
//www.guangxin419.com/uploadfiles/128.1.164.122/webid2277/source/202310/169707690944.jpg
Inquire Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
//www.guangxin419.com/uploadfiles/128.1.164.122/webid2277/source/202310/169707690944.jpg
Product Detail



Serial No. GX1002...

010

020

030

035

040

045

050

060

070

080

090

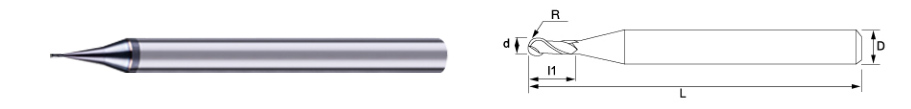

R Diameter d

0.10

0.20

0.30

0.35

0.40

0.45

0.50

0.60

0.70

0.80

0.90

Flute Length l1

0.40

0.80

1.20

1.40

1.60

1.80

2.00

2.50

3.00

3.50

4.00

Shank Dia D

4

4

4

4

4

4

4

4

4

4

4

Total Length L

50

50

50

50

50

50

50

50

50

50

50

Name:

2Flutes Micro End Mill/Ball Nose Mill

Material:

Solid Carbide

Flute Dia:

0.1~4mm

HRC:

45°, 50°, 55°, 58°, 60°, 65°

Shank Dia:

4~6mm

Coating:

AlTiN, TiAlN, TiAlSi, TiSiN, TiN, DLC, Nano, Diamond

Total Length:

38~330mm

Precision:

0.005~0.01mm

Process Equipment:

CNC Tooling

Suitable For:

Medical Equipment, PCB, Steel, Gold, Silver, Copper, Plastic, Non Ferrous, Fiber, Stainless Steel
