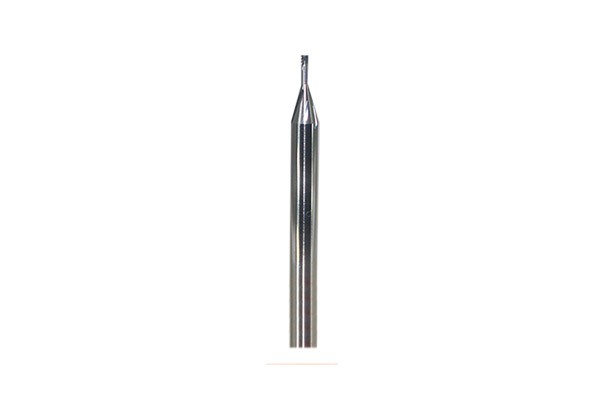

Millipro
Serial No.GX100... | tpi | mm | Z | ||||
UNC | UNF | D2 | D1 | L1 | L2 | ||
NO.1-72 | 72 | 4 | 1.45 | 57 | 3.9 | 3 | |
NO.1-64 | NO.2-64 | 64 | 4 | 1.45 | 57 | 4.2 | 3 |
NO.2-56 | NO.3-56 | 56 | 4 | 1.65 | 57 | 5.0 | 3 |
NO.3-48 | NO.4-48 | 48 | 4 | 1.90 | 57 | 6.0 | 3 |
NO.4,NO.5-40 | NO.6-40 | 40 | 4 | 2.10 | 57 | 6.0 | 3 |
NO.5-40 | NO.6-40 | 40 | 4 | 2.45 | 57 | 7.2 | 3 |
NO.8-36 | 36 | 4 | 3.30 | 57 | 8.7 | 3 | |
NO.6,NO8-32 | NO.10-32 | 32 | 4 | 2.55 | 57 | 7.4 | 3 |
NO.8-32 | NO.10-32 | 32 | 4 | 3.20 | 57 | 10.0 | 3 |
1/4"*28 | 28 | 6 | 5.25 | 57 | 13.2 | 3 | |
NO.10-24 | 5/16"*24 | 24 | 4 | 3.58 | 57 | 10.2 | 3 |
5/16"*24 | 24 | 8 | 6.68 | 63 | 16.5 | 3 | |
1/4"*20 | 7/16"*20 | 20 | 6 | 4.88 | 57 | 13.2 | 3 |
7/16"*20 | 20 | 10 | 9.55 | 73 | 23.0 | 3 | |
3/8"*16 | 16 | 8 | 6.70 | 63 | 19.1 | 3 | |
7/16"*14 | 14 | 10 | 9.00 | 73 | 23.3 | 3 | |
