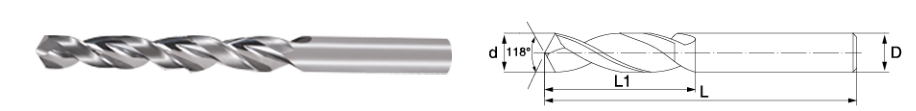

Serial No. | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 150 | 200 |
Diameter d | Φ3.0 | Φ4.0 | Φ5.0 | Φ6.0 | Φ7.0 | Φ8.0 | Φ9.0 | Φ10.0 | Φ11.0 | Φ12.0 | Φ13.0 | Φ15.0 | Φ20.0 |
Flute Length l1 | 16 | 22 | 26 | 28 | 34 | 37 | 40 | 43 | 47 | 51 | 51 | 76 | 94 |
Shank Dia D | 3 | 4 | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 16 | 20 |
Total Length L | 50 | 50 | 70 | 70 | 80 | 80 | 90 | 95 | 100 | 110 | 110 | 140 | 160 |

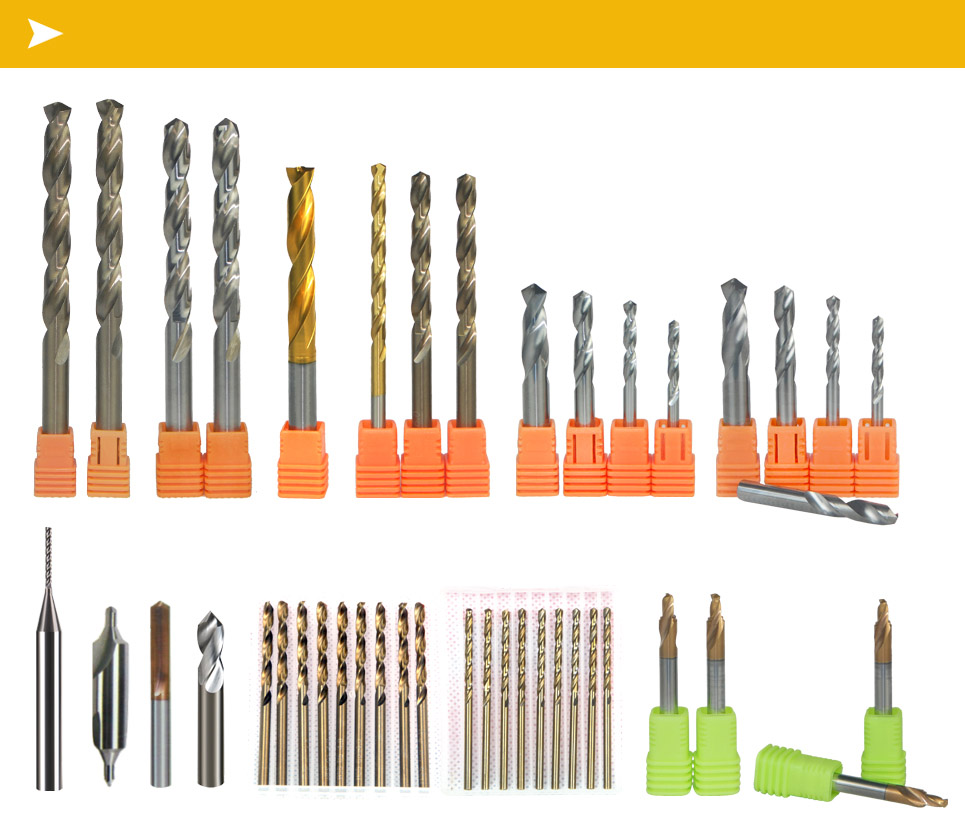

Name: | Drill | Material: | Solid Carbide/HSSE |
Flute Dia: | 0.1~40mm | HRC: | 45°, 50°, 55°, 58°, 60°, 65° |
Shank Dia: | 3~40mm | Coating: | AlTiN, TiAlN, TiAlSi, TiSiN, TiN, DLC, Nano, Diamond |
Total Length: | 38~330mm | Precision: | 0.005~0.01mm |
Process Equipment: | CNC Tooling | Suitable For: | Carbon Steel, Alloy Steel, High Alloy Steel, Tool Steel, Aluminum, Copper, Plastic, Acrylic, PVC, Wood, Titanium |
